Product Information
Series:
Single Cylinder Arm
Type
Single Cylinder Type
Needles:
12 - 18
Max Speed:
1200SPM

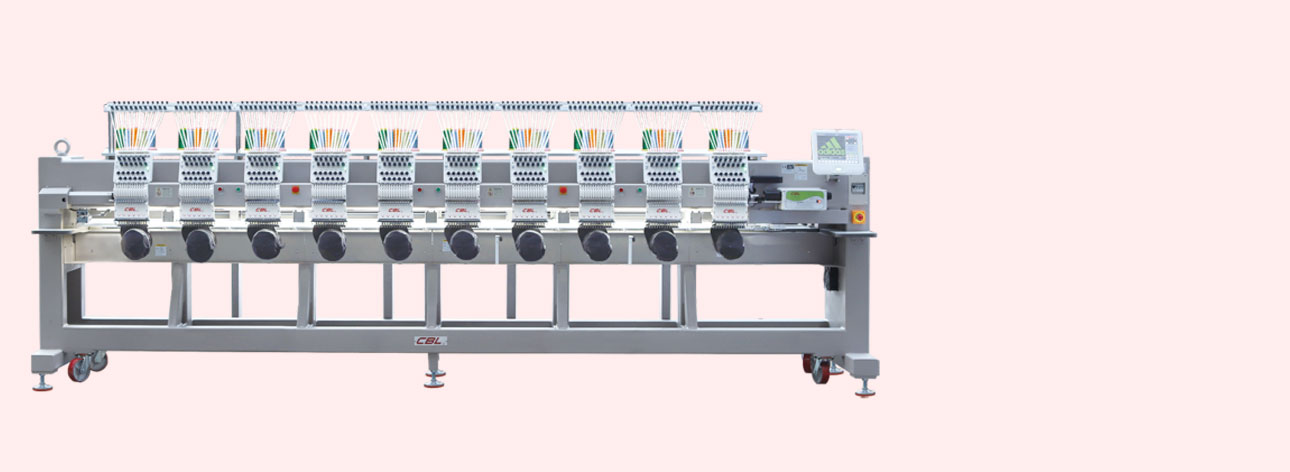

Multihead Tubular Type
Multihead Tubular Machines
CBL offers a full range of multihead cap embroidery machines up to 12 heads. CBL launched the first 12 head tubular machines in China to meet mass production requests.
Division of Models
| Model | Needle | Head | Display | Emb. Area | Machine Dimension |
|---|---|---|---|---|---|
| CBL-1204CH | 12 | 4 | 12.1” LCD Touch Panel | 400X450mm/16”X18” | 2600X1340X1720mm/102”X53’X68” |
| CBL-1501SC | 12 | 6 | 12.1” LCD Touch Panel | 400X450mm/16”X18” | 3400X1340X1720mm/134”X53”X68” |
| CBL-1208CH | 12 | 8 | 12.1” LCD Touch Panel | 400X450mm/16”X18” | 4200X1340X1720mm/165”X53”X68” |
| CBL-1210CH | 12 | 10 | 10” HD LCD Touch Panel | 400X450mm/16”X18” | 5000X1340X1720mm/197”X53”X68” |
| CBL-1212CH | 12 | 12 | 10” HD LCD Touch Panel | 400X450mm/16”X18” | 6600X1340X1720mm/260”X53”X68” |
| CBL-1504CH | 15 | 4 | 10” HD LCD Touch Panel | 400X450mm/16”X18” | 2600X1340X1720mm/102”X53’X68” |
| CBL-1506CH | 15 | 6 | 10” HD LCD Touch Panel | 400X450mm/16”X18” | 3400X1340X1720mm/134”X53”X68” |
| CBL-1508CH | 15 | 8 | 10” HD LCD Touch Panel | 400X450mm/16”X18” | 4200X1340X1720mm/165”X53”X68” |
| CBL-1510CH | 15 | 10 | 10” HD LCD Touch Panel | 400X450mm/16”X18” | 5000X1340X1720mm/197”X53”X68” |
| CBL-1512CH | 15 | 12 | 10” HD LCD Touch Panel | 400X450mm/16”X18” | 6600X1340X1720mm/260”X53”X68” |
Notes:
- 500mm head interval model is available as required.
- 18 needle model is available as required.
- OEM&ODM orders are welcome.
Technical Parameters
- Latest BARUDAN design/Engineering
- Servo motor for main axis movement
- Servo motor for X and Y axis movements
- Suitable for cap, flat, finished garment embroidery and more.
- Thread breakage detection by wheels and springs, intelligent thread breakage detection (also suitable for combination embroidery)
- Stepping motor trimming
- Active motor color-change
- Jumping electromagnet for machine arm
- Heavy duty linear guide rail for X and Y axis driving
- Reinforced bridge body of Wuhan Steel
- Rail type of frame guide rail
- Heavy duty frame bearing
- Thread break detection
- Automatic and manual color change, automatic start
- Setting the offset point, save pattern’s origin point
- Setting the offset point, save pattern’s origin point
- Data statistics and embroidery parameters
- Positioning idling, high speed idling, low speed idling
- Automatic trimming
- Automatic trimming
- Rotate, magnify, delete, copy, combine and divide patterns
- Needle down operation
- Set frame protection at power off, set frame origin
- Return to the start point or stop point
- Dahao A68 12” HD True Color Touch Panel
- Memory capacity: 200 million stitches or 500 designs
- Maximum design stitches: 2,000,000 stitches
- Intelligent and sensitive TB Detection: Type3-Magnetic encoder
- Stepping motor color change
- Frame Function: Servo Drive
- Multiple languages: English, Chinese, Spanish, Portuguese, Turkish, French, Russian, Arabic and other more. 14 languages.
- Thread break detection
- Automatic and manual color change, automatic start
- Cyclic embroidery, edit pattern and pattern combination
- Display memory design in sequence,preview design
- Setting the offset point, save pattern’s origin point
- Data statistics and embroidery parameters
- Positioning idling, high speed idling, low speed idling
- Automatic trimming
- Rotate, magnify, delete, copy, combine and divide patterns
- Patching embroidery, compensating of sating stitches,design from parameter
- Operation of patter periphery
- Needle down operation
- Set frame protection at power off, set frame origin
- Return to the start point or stop point
- Multi-languages available

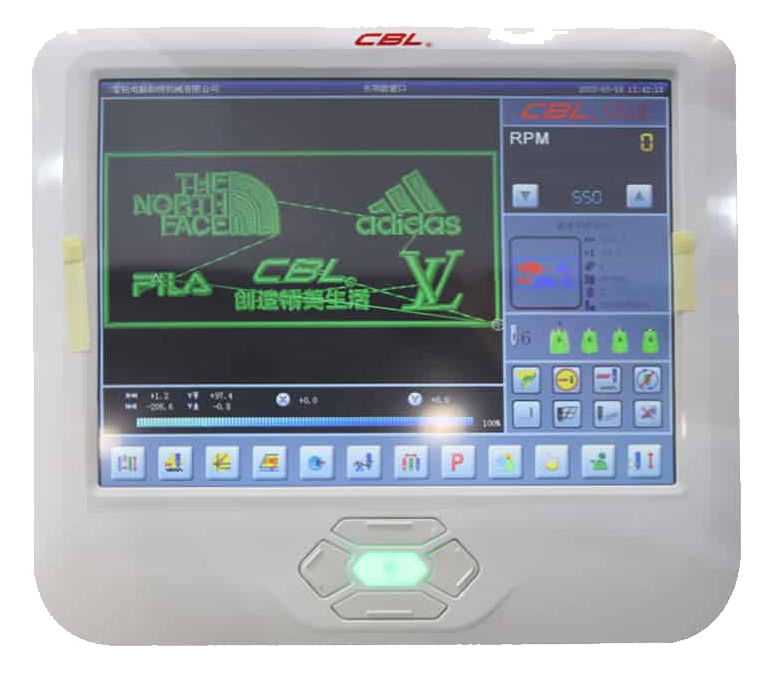

Control Panel Features
- Dahao A68 12.1” HD True Color Touch Panel
- Memory capacity: 100 million stitches or 500 designs
- Maximum design stitches: 2,000,000 stitches
- Intelligent and sensitive TB Detection: Type3-Magnetic encoder
- Stepping motor color change
- Frame Function: Servo Drive
- Lock-stitch looping available
- Laser embroidery available
- Beed embroidery available
- Thermal cutting available
- New Encryption available
- Coilng embroidery available
- Cording embroidery available
- Multiple languages: English, Chinese, Spanish, Portuguese, Turkish, French, Russian, Arabic

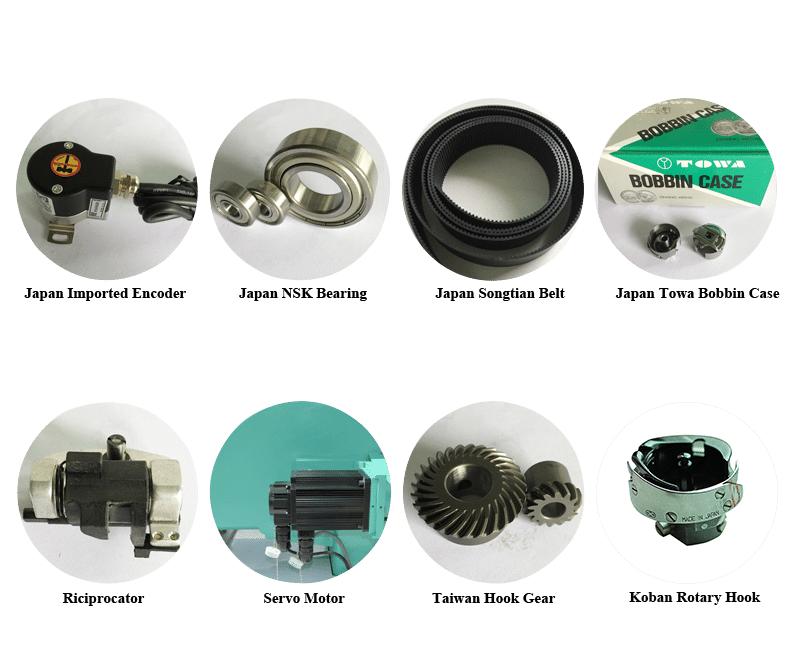

Machine Highlights
- Original Japanese Koban Rotary Hook
- Original Japanese Bobbin case
- Original Taiwan Hook gear
- Machine body-Wuhan steel (The best in China)
- Original Japanese Reciprocator Slide block
- Original Japanese Rotary hook shaft bushing
- Take-up lever Driving lever AB-Ball design
- Reinforced table stand to reduce vibration

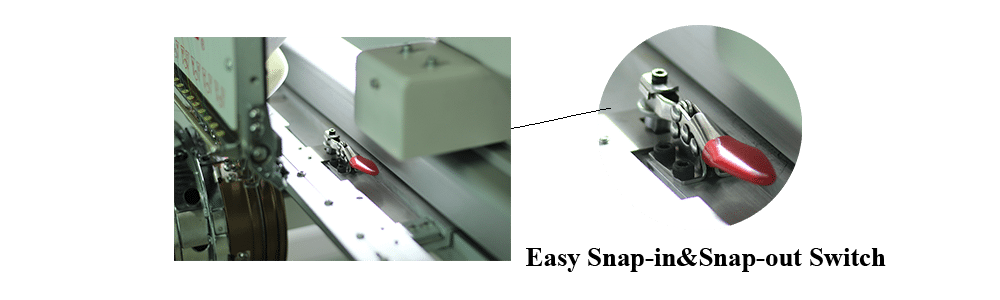

- Easy and quick snap-in&snap-out design, saving hoop replacement time greatly
The only smart hoop system from China. Fitting tubular hoops, cap frame, border frame in seconds,saving time greatly.

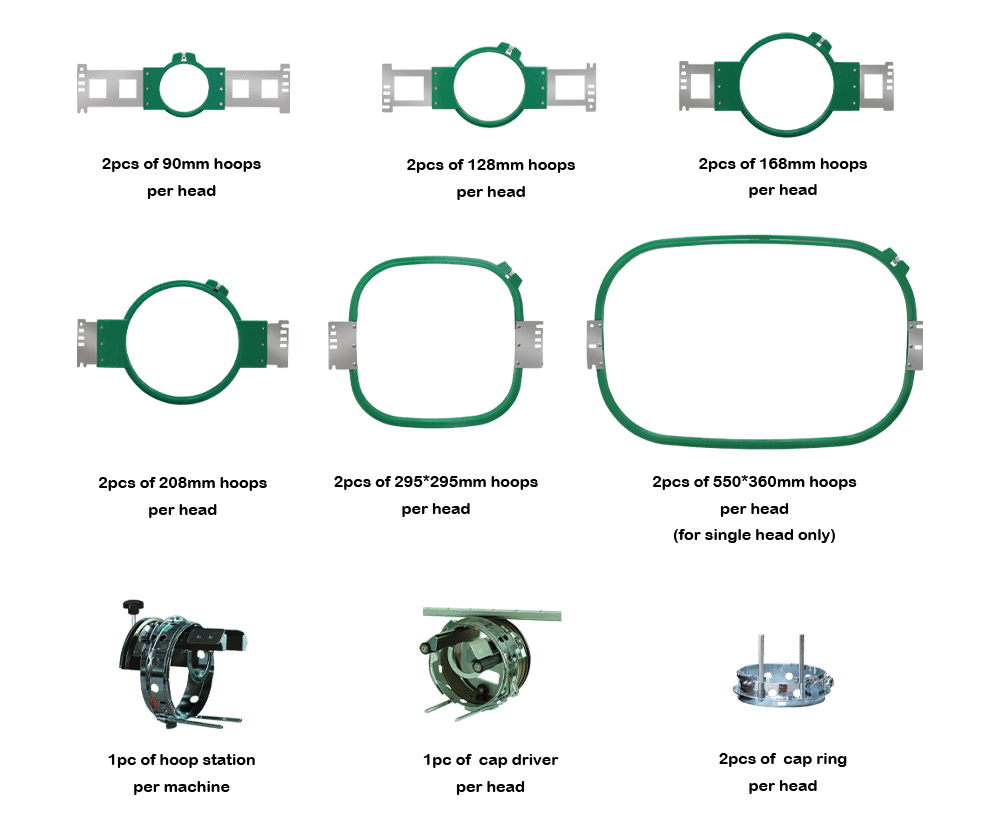

Hoops and Cap Attachment Included:

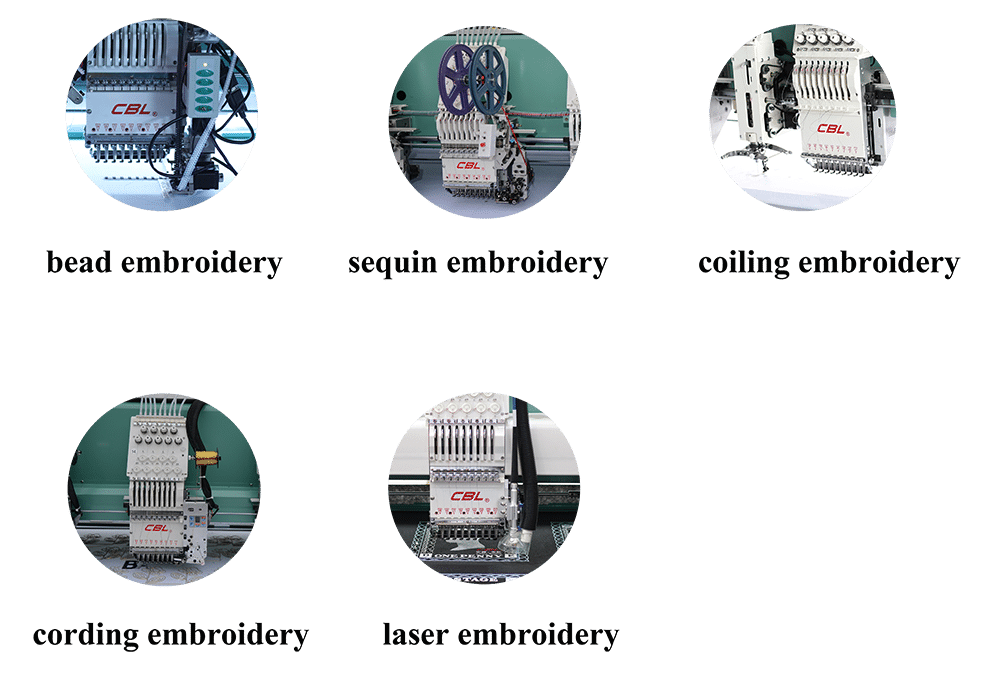

Optional Devices:
